Automatic Insulating Glass Production Line LJBZ2535
APPLICATION
Lijiang IG production line uses the latest technology. Its main purpose is to create high-end quality and provide a large number of useful functions, improve production efficiency, save production costs and maximize profits.
Now Lijiang has mainly two different digging lines. One uses a transfer wheel to transport glass, and the other is a new technology that uses air flotation technology to transport glass. This new technology is to protect the glass from contamination and leave traces, so the new technology is adopted to improve the high quality of IG products.
Main Features
• Adopts SIEMENS control system to maintain stable performance
• PLC control system, touch screen interface
• Digital display automatically adjusts adhesive depth
• Use servos to control system, modular and overlay functions
• Applicable for manufacturing step IG, triple IG, and molded IG
• Two IGUs can be created at once and filled with argon gas (optional).
• Minimum and maximum glass sizes are optional.
Technical data
| Max. glass size | 2500mm*3500mm |
| Min. glass size | 280mm*400mm |
| Glass thickness | 3-15mm |
| Insulating glass thickness | 50mm / 60mm |
| Glass washing speed | 2-10m/min |
| Glass conveyor speed | 45m/min |
| Washing brushes | 3 pairs |
| Water supply | Water consumption:0.5t/h conductivity:40μs/cm |
| Air supply | Flow: 0.8m/min |
| Air pressure | ≥0.8MPa |
| Total power | 3P 380V 50HZ 40KW |
| Dimension | 23500*3500*3700mm |
| Weight | 6500kg |
Electrical parameters
| NAME | ORIGIN | BRAND |
| Transfer motor | Germany | SIEMENS |
| Brush motor | Germany | SIEMENS |
| Servo motor | Germany | SIEMENS |
| PLC | Germany | SIEMENS |
| Low voltage electrical appliance | Germany | SIEMENS |
| Frequency converter | Germany | SIEMENS |
| Micro Switch | Taiwan | TEND |
| Button and indicator light | France | SCHNEIDER |
| Touch screen | Taiwan | WEINVIEW |
| Intermediate relay | Japan | OMRON |
| Water pump | China | LINGXIAO |
| Guide | Taiwan | HIWIN |
| Pneumatic Components | Taiwan | AIRTAC |
| Electric gauge | China | MIRAN |
| Photoelectric switch | Korea | AUTONICS |
| JINAN LIJIANG AUTOMATION EQUIPMENT CO.,LTD |
Detailed description
1.The washing machine uses 304 stainless steel materials
The whole washing and drying section adopt 304 stainless steel materials, including the plate and interior spare parts.

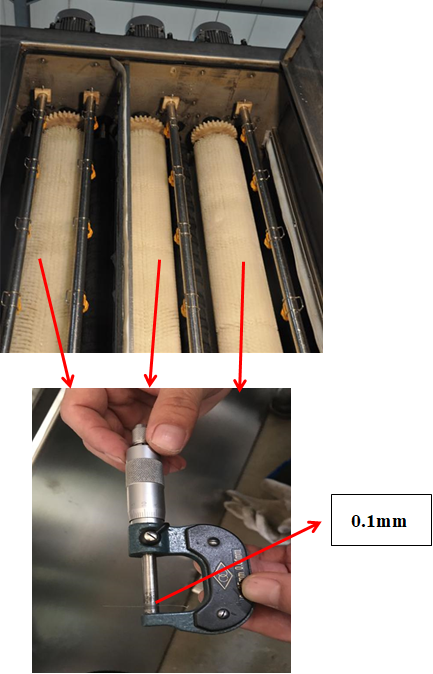

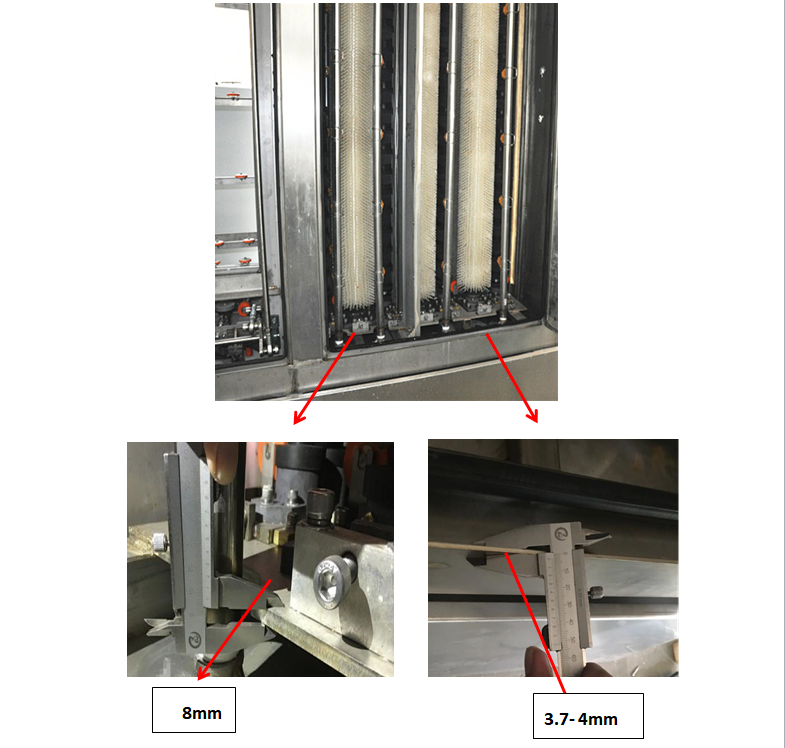

2.The washing machine uses six (nine-e) brushes with a diameter of 0.mm mm.
It has br brushes which are all soft brushes, can clean low glass, flat glass, tempered glass and others. Its diameter is less than 0.mm Bristol, never breaks glass, especially for low e glass.

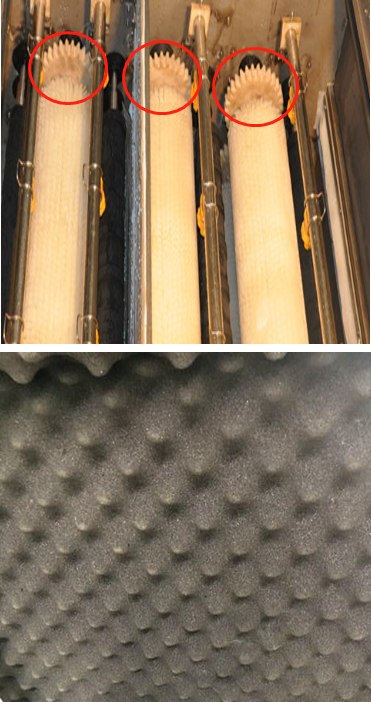

3.Using Europe's advanced anti-noise system to create a good working environment for employees
The noise can be controlled below 90 decibels by using nylon gear and sponges.

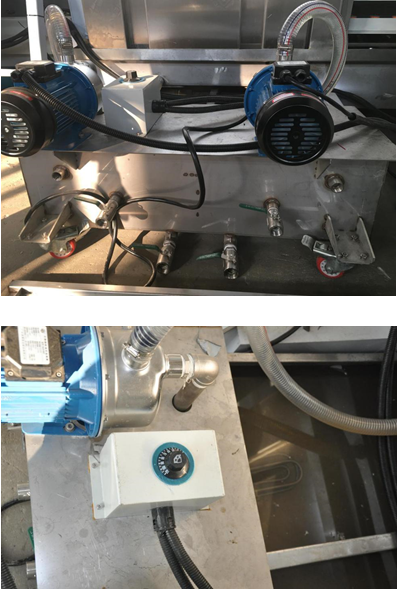

4.Water. Water heating system and water filter system.
As water quality varies from country to country, using clean water to clean the glass by adopting an air heating system to ensure that the glass was clean enough. What’s more, by using a water filter system to recycle water, save water and keep the water clean.
